Grande

a++

Opis

A central heating Pellet boiler of exceptional quality and outstanding performances. The most efficient source of reliable and safe heating for bigger residential units. Is characterized by a big pellet container and an innovative semi-automatic cleaning mode.


TEHNiČKE KARAKTERISTIKE

Snaga 28 kW

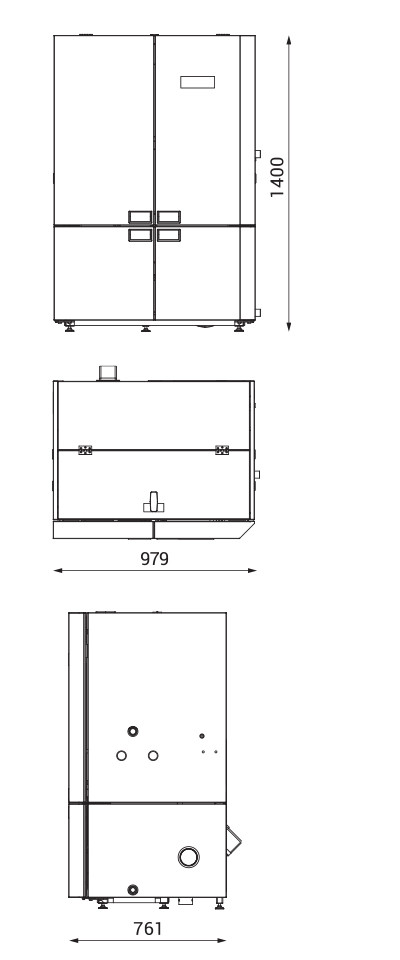

Dimenzije (Š x D x V) 979 x 761 x 1400 mm
Precnik dimovodnog nastavka 80 mm
Toplotna moć predata vodi 28 kW
Količina vode u kotlu 74 l
Potrošnja peleta min/max 1,8 / 6,47 kg/h
Maksimalno vreme rada sa punim rezervoarom 111 h
Kapacitet rezervoara za pelet 200 kg
Zapremina zagrevanja 420 - 700 m3
Minimalna površina zagrevanja 168 m2
Maksimalna površina zagrevanja 280 m2
Težina neto/bruto 321 / 344 kg
Stepen iskorišćenja 91 %
Klasa energetske efikasnosti A++

Standards:

Advantages

  • The casing made of quality sheet metal, protected with paint and varnish resistant to high temperatures.
  • The steel fire box door.
  • The boiler made of boiler sheet metal.
  • Thermal insulation of the boiler with mineral wool.
  • Compartment for maintenance accessories is located in the upper part of the boiler under the pellet hopper.
  • For control of combustion process, the following items are fitted in:
  •         * very advanced firmware with large space for adjustment and compatibility of various configurations of heating systems;
  •         * optional buffer connection, additional pellet hopper, pellet level sensor;
  •         * encoder control enabling continual and even supply of pellet providing better operation;
  •         * state-of-art LCD Touch Panel;
  • Variable parameters enabling precise boiler operation to a considerable amount
  • NEW: 5 years warranty on boiler
