Dino

a+

Opis

Central heating pellet stove with modern design and advanced combustion control, achieves high performance.

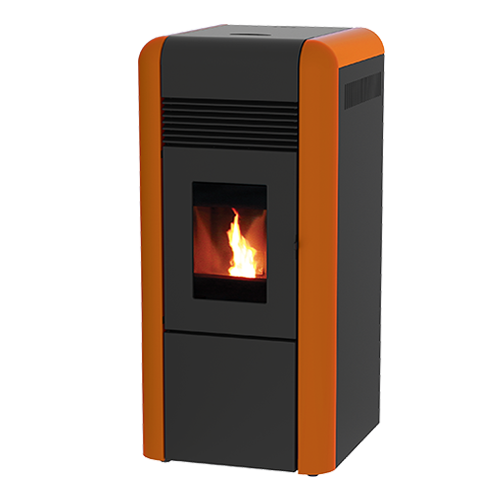

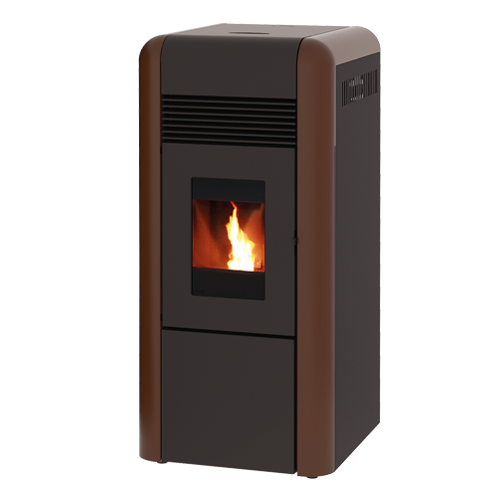

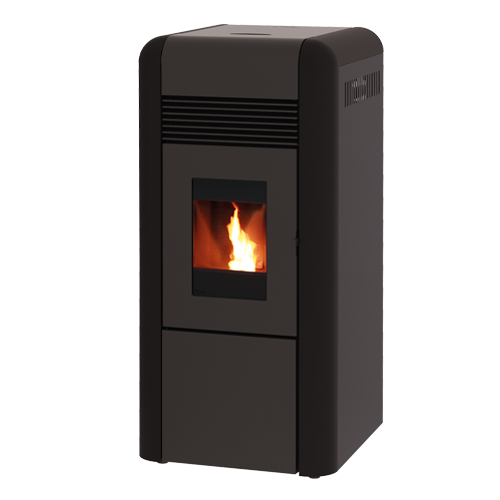

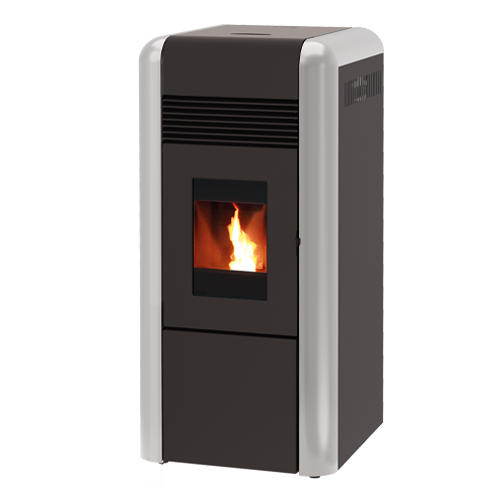

Application of modern technology provides the user with maximum safety in use, while additional cleaning systems make it much easier to maintain the stove. The product is available in four attractive colours.



TEHNiČKE KARAKTERISTIKE

Snaga 17.1 kW
Dimenzije (Š x D x V) 574 x 568 x 1237 mm
Moć grejanja zračenjem 1 kW
Precnik dimovodnog nastavka 80 mm
Toplotna moć predata vodi 16 kW
Količina vode u kotlu 32 l
Potrošnja peleta min/max 1,3 / 3,7 kg/h
Maksimalno vreme rada sa punim rezervoarom 35 h
Kapacitet rezervoara za pelet 45 kg
Zapremina zagrevanja 255 - 425 m3
Minimalna površina zagrevanja 102 m2
Maksimalna površina zagrevanja 170 m2
Težina neto/bruto 193 kg
Stepen iskorišćenja 93 %
Klasa energetske efikasnosti A+

Standards: EN 16510-2-6

Advantages

  • The casing made of quality sheet metal protected with paint resistant to high temperatures.
  • Improved tightness and complete control of the combustion air inflow is achieved by installation of cast iron fire box door and sealing the reservoir cap.
  • Fully controlled combustion process and adjustment of furnace operation to pellet quality and chimney draft is provided by installation of additional components.
  • The special fire box door safety handle.
  • Large, ceramic glass on the fire box door resistant to 700° C and visible flame bring additional wormth to your home.
  • Fire box made of special fire-resistant cast, combustion chamber made of special sheet metal and boiler made of sheet metal intended for boilers.
  • Weekly programming of the furnace operation.
  • The furnace ability to operate on 5 power levels.
  • Components necessary for the operation of the heating system are factory-installed in the product.
  • Built-in safety thermostats prevent water overheating in the boiler and  the furnace self-ignitiion.
  • Cleaning systems additionally facilitate the furnace maintenance and enable reliable operation.
  • The possibility of heating sanitary water (in the boiler) and connection to the floor heating system.
