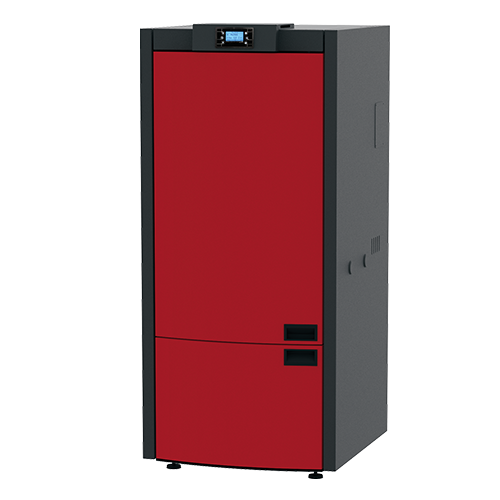

Commo Compact 37

a+

Opis

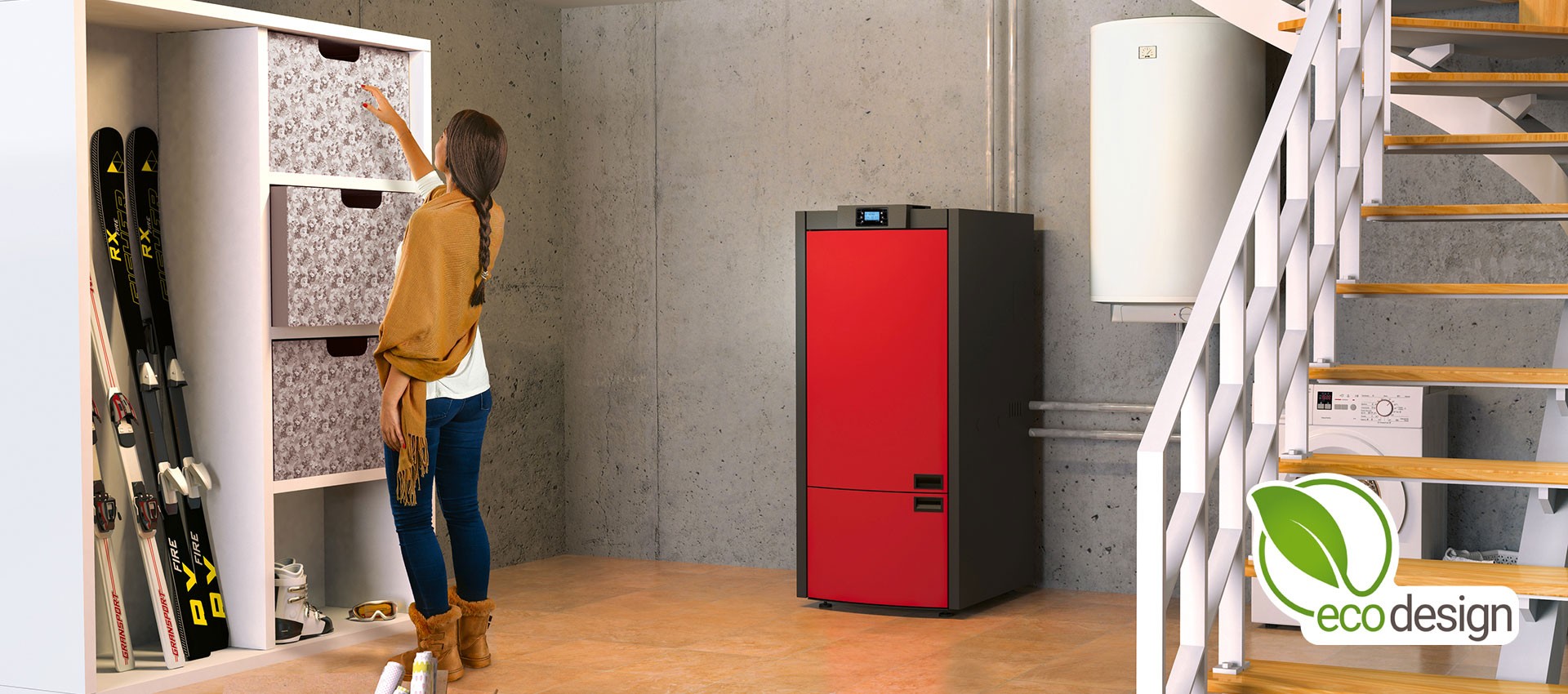

A central heating pellet furnace of reasonable dimensions and simple design, suitable for positioning in basements as well as residential rooms. A High level of automation with an innovative semi-automatic cleaning mode enables maximal comfort during use. High level of efficiency. The possibility of achieving greater operational autonomy by installing an additional pellet container.
• Remote control through android and IOS applications (optional).

TEHNiČKE KARAKTERISTIKE

Snaga 37 kW

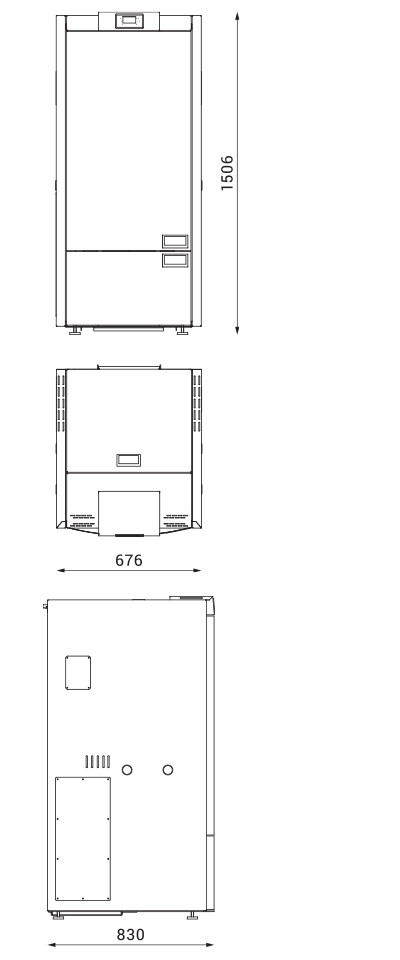

Dimenzije (Š x D x V) 676 x 830 x 1506 mm
Dimenzije ložišta (D x Š x V) 130 x 180 x 80 mm
Precnik dimovodnog nastavka 100 mm
Toplotna moć predata vodi 37 kW
Količina vode u kotlu 68 l
Potrošnja peleta min/max 2,13 / 8,36 kg/h
Maksimalno vreme rada sa punim rezervoarom 33 h
Kapacitet rezervoara za pelet 70 kg
Zapremina zagrevanja 555-925 m3
Minimalna površina zagrevanja 222 m2
Maksimalna površina zagrevanja 370 m2
Težina neto/bruto 360 / 380 kg
Stepen iskorišćenja 90 %
Klasa energetske efikasnosti A+

Standards: EN 303-5, Ecodesign

Advantages

  • The casing and fire box door are made of quality sheet metal and protected with paint and varnish resistant to high temperatures.
  • Heat insulation of fire box door by vermiculite as well as additional heat insulation of the very boiler by mineral wool reduces heat emission into the room and increase fuel efficiency coefficient.
  • Fire box made of special cast and boiler made of sheet metal intended for boilers.
  • Weekly programming of the boiler operation.
  • The boiler ability to operate on 5 power levels.
  • Components necessary for the operation of the heating system are factory-installed in the product.
  • Built-in safety thermostats prevent water overheating in the boiler and  the furnace self-ignitiion.
  • Cleaning systems additionally facilitate the furnace maintenance and enable reliable operation.
  • The possibility of heating sanitary water (in the boiler) and connection to the floor heating system.
  • NEW: Automatic firepot cleaning
